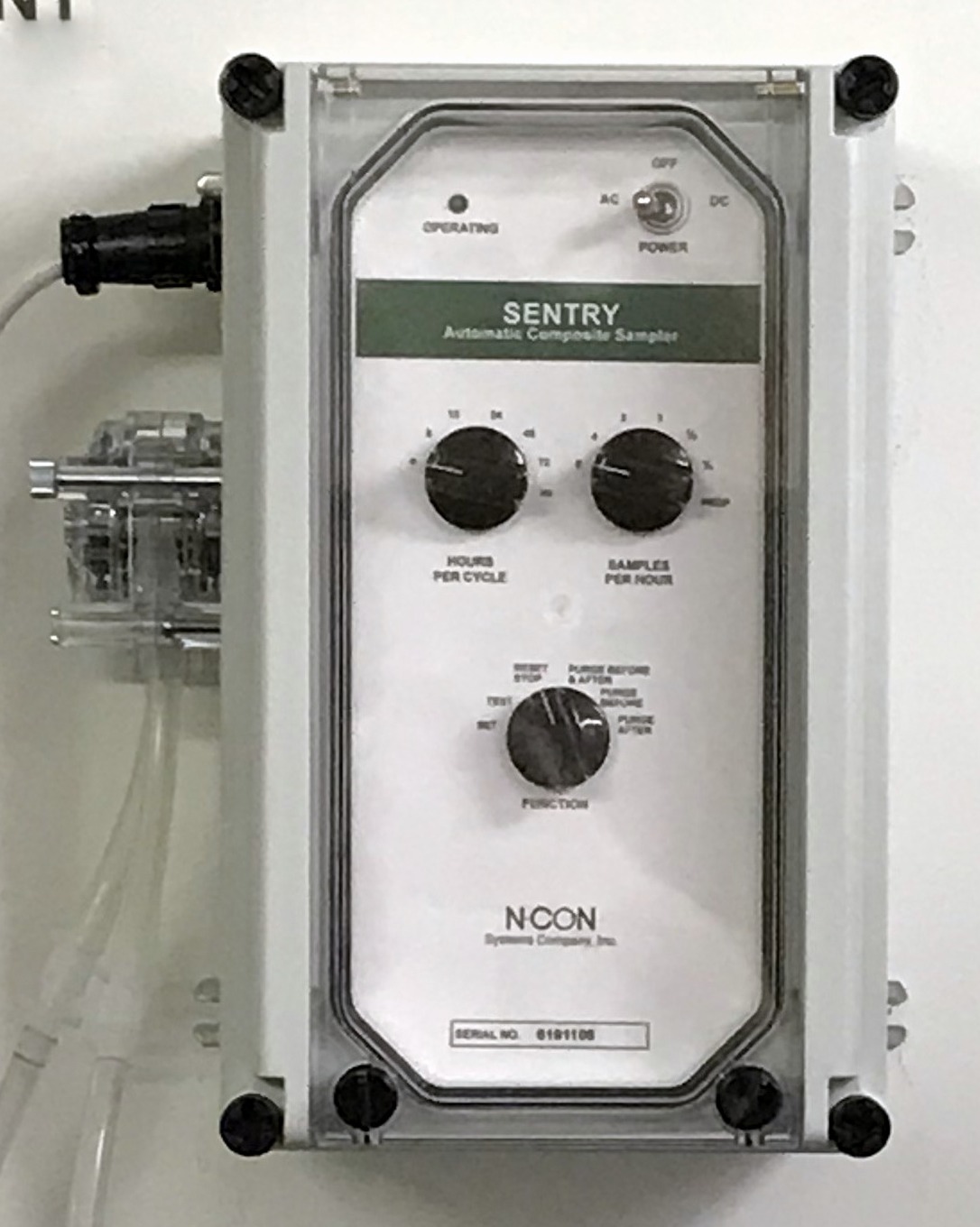

Sentry Automatic Composite Sampler

Compact, Automatic Composite Sampler

    Wastewater/Industrial treatment

    Water/Wastewater Surveilance

    Compliance monitoring


  • Simple, straight foward opeartion

  • Compact form factor in NEMA-4X enclosure

  • Time or flow-based sampling

  • Microcontroller with simple knob controls - no programming required

  • Peristaltic pump with stainless steel bearing and rollers for corrosion-free operation

  • Can be wall, pole or refrigerator mounted


SIMPLE SETUP WITH NO PROGRAMMING


  • Set sample volume with simple calibration

  • Choose Cycle Duration - Turn off is automatic or with optional float switch

  • Time based sampling at 1,2,4 samples per hour or 1 sample every 2 or 3 hours.

  • Purge options: Before, After or Before and After sample

  • Maximum lift: 20 feet

  • Use your own sample container or select for a variety of sample bottle options
The SENTRY Automatic Sampler is designed for permanent indoor installation or outdoor operation in a sheltered setting. Low maintenance with quick tubing change using 2 thumb screws.

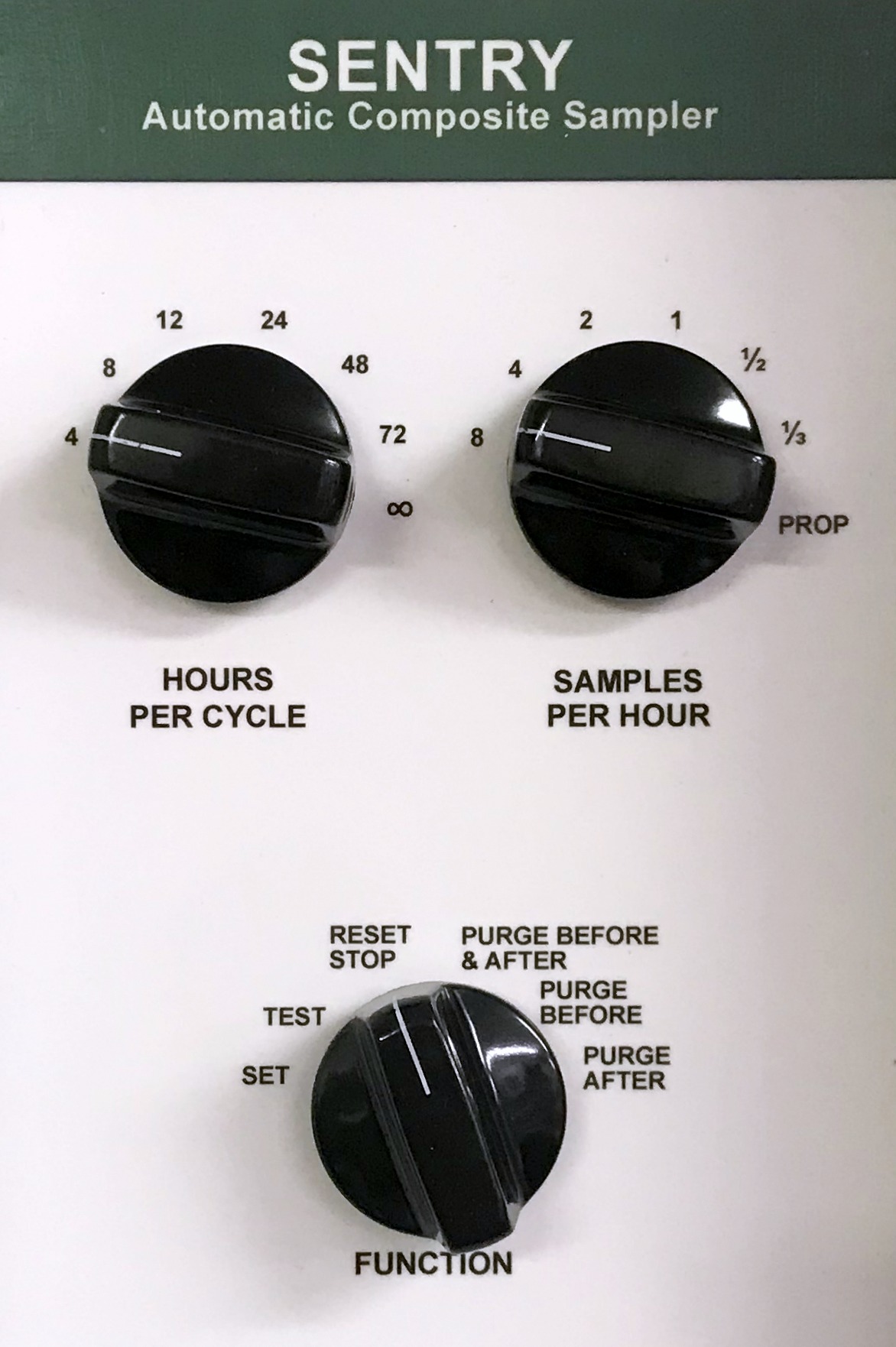

SAMPLER CONTROL PROGRAMMER

  • Type: Solid state control
  • Samples per hour switch: 1, 2, 4, or 8 samples/hour or 1 sample every 2 or 3 hours
  • Function switch: Test, Reset, or Set positions with purge selection before, after, or both before and after sample collection
  • Cycle switch: Used to set system to turn off automatically in 3,6,12, 24, 48 or 72 hours.
  • Reset button on side: Resets cycle time when sample is picked up without opening programmer cover.
  • Sample volume sample size between 20 and 500 ML

    • PUMP

  • Type: Peristaltic
  • Material: Polycarbonate with stainless steel rollers and shaft
  • Bearings: Low-friction ball bearings
  • Tubing: Silicone rubber (medical grade)
  • Flow rate: 1350 ML/minute at 3’ head
  • Inlet velocity: 1.5’/second at 3’ head
  • Lift: 20 feet

    • INSTALLATION OPTIONS

  • Wall/Pole Mounting • Easily wall-mounted with optional wall or pole mounting kit
  • Refrigerator Mounting • Install horizontally on any standard refrigerator wich can accomodate a 1/2” hole for delivery tubing
  • Outdoor Installation • An enclosed shelter is required.
  • Operational Temperature • 32-128° F ambient

    • HOUSING

  • Screw-sealed, gasketed fiberglass NEMA 4X, with clear Polycarbonate cover
  • Dimensions: 12-1/2”high, 10-1/2” Wide, 7-3/4” Deep
  • Weight: 10 lbs

    • POWER REQUIREMENTS

  • 115 VAC, 60 HZ, 12 VDC
  • Export: 220 VAC, 50-60 HZ, 12 VDC
  • Maximum Power: 45 milliamp continuous,1 ampere intermittent
